For studying Ascending aortic flow, the Apical five Chamber position is the best choice. In this position, the flow is almost parallel to the ultrasonic beam. It is also possible to use the left parasternal approach, the long axis of the heart and the Suprasternal Approach.

The Sample Volume is placed on top of the aortic valve cusps. The flow will almost always exceed the Nyquist limit, therefore a continuous wave Doppler is better to use for examination.



Sample Volume position. Apical 5 Chamber view



Sample Volume position. Parasternal view Long axis



Normally, the flow in the outflow tract of the left ventricle occurs in the systole phase and is directed towards the aorta. The flow is directed away from the transducer and located below the baseline.

In the aorta, the flow speed is slightly higher than in the outflow tract of the left ventricle. If there is no aortic stenosis, it is possible to limit ourselves only to study the outflow tract flow (In this case, the flow in the aorta is almost the same as in the LV outflow tract).

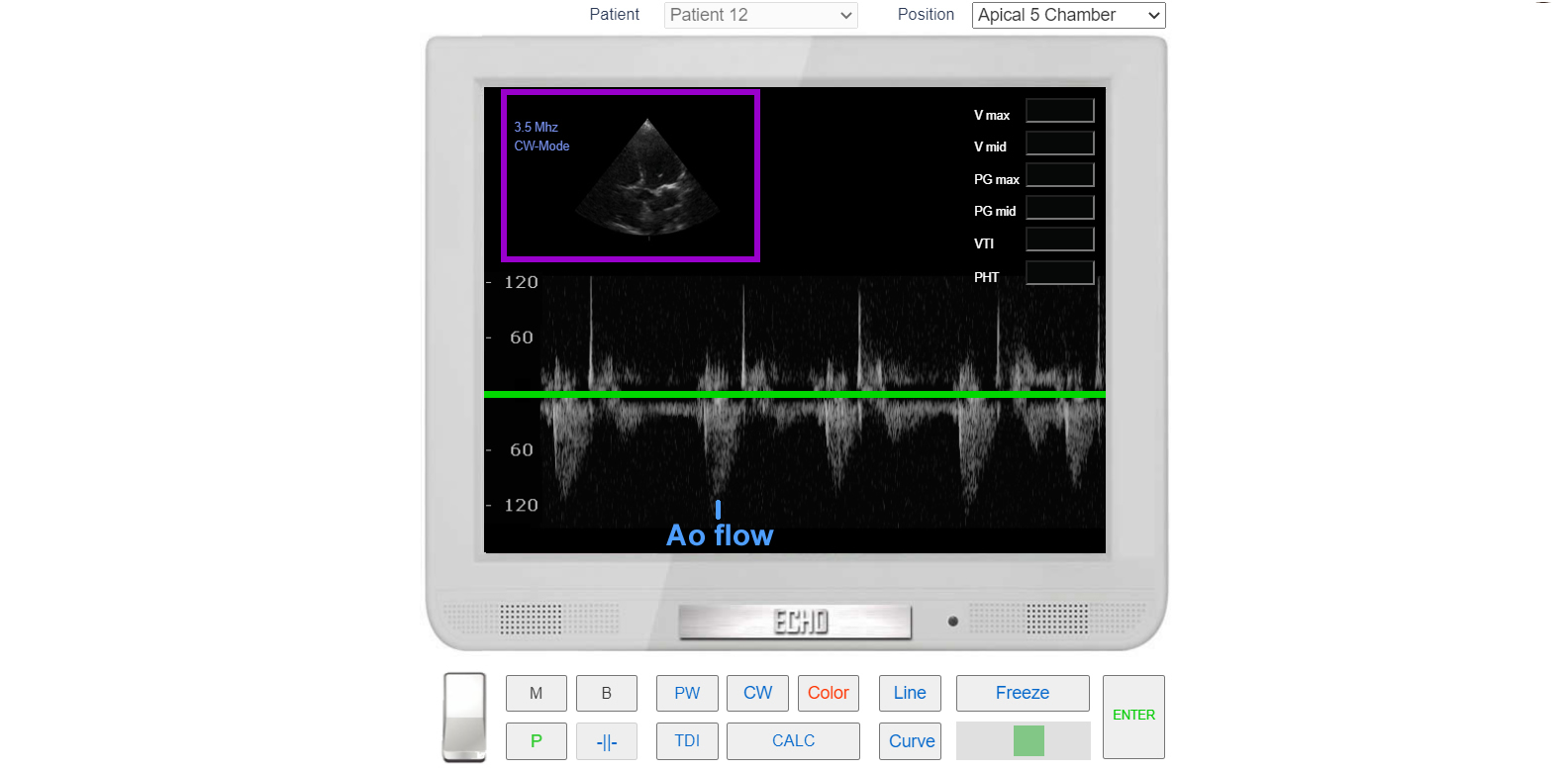

LVOT flow. CW Doppler





Sample Volume position. Suprasternal view Long axis



In the case of the Suprasternal Approach, The flow is directed towards the transducer and located above the baseline.

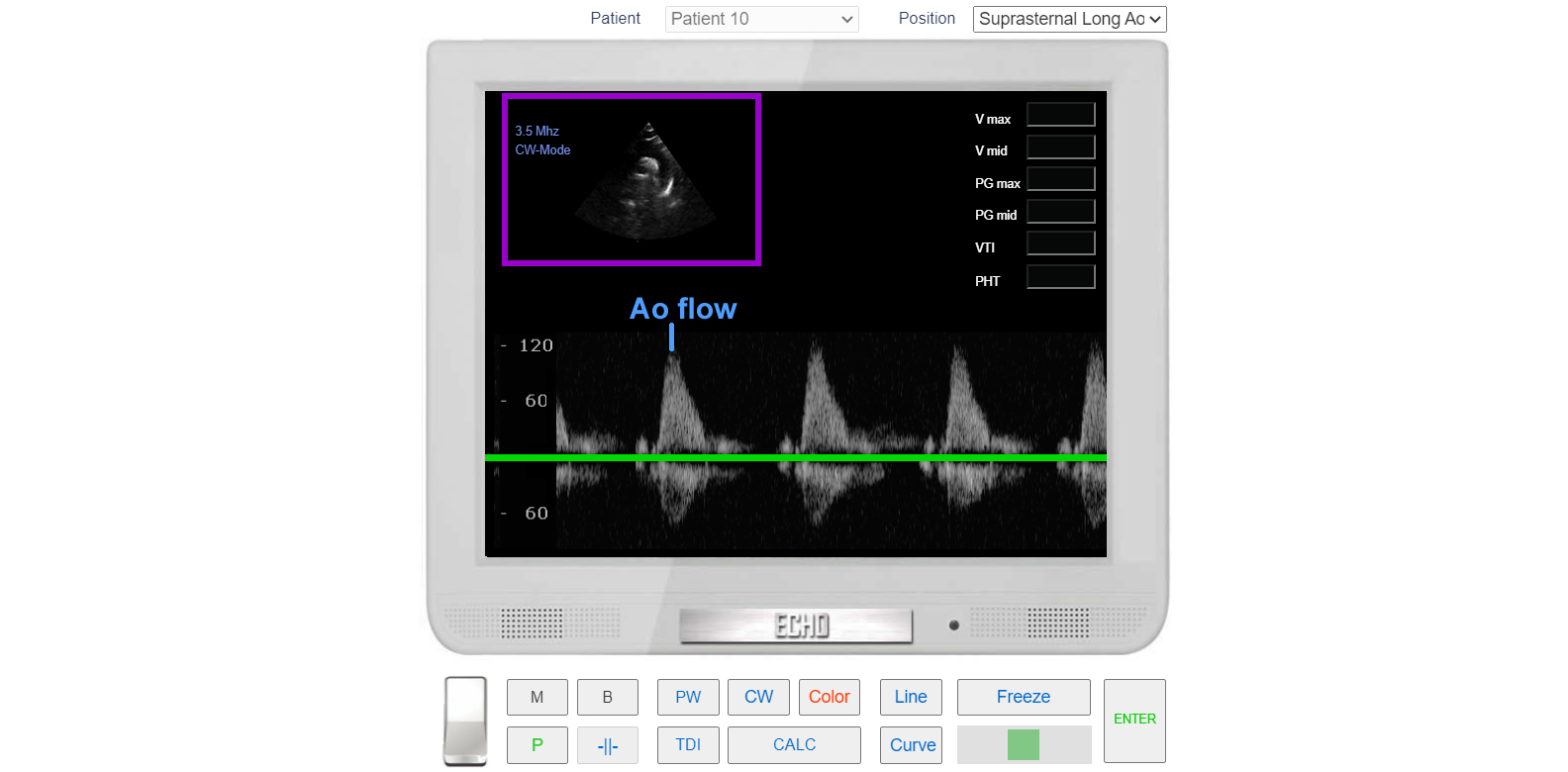

Suprasternal view Long axis. Asvending Aortic flow. CW Doppler



How to Simulate Ascending Aortic Flow (PW and CW mode)?

---
