Assessment degree of mitral stenosis by Mitral Valve area (Continuity Equation)

Echocardiography Simulator



What about a little bit of theory before beginning simulation? >>>



  • Run Echocardiography Online Simulator
  • From the List <<Patients>> Choose Patient 2.
  • From the List <<Positions>> Choose Parasternal Long (Left Parasternal View, Long axis of LV). or find the same position with 3D Transducer.
  • Click the button <<Freeze>> to freeze image.
  • Click Button <<Calculations>> Click Tab <<MV st >> Click Radio Button <<D Lvot>> (Calculator MVA by Continous equestion).
  • Click the button <<Line>> Measure linear size of Left Ventricular Outflow Tract (LVOT). See Linear measurements.
  • Click the button <<Enter>>

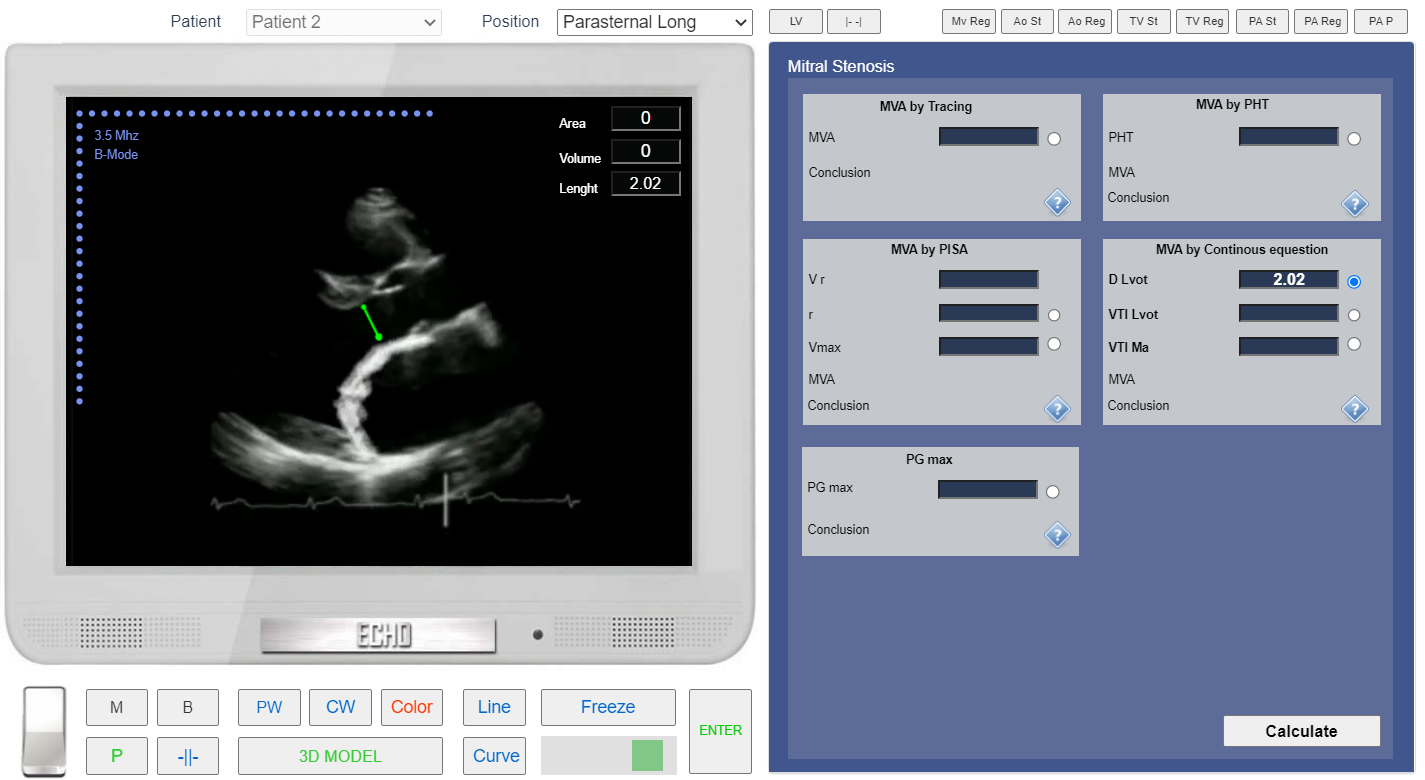

Left Parasternal View, the Long axis of LV. Measurement of the LVOT diameter.



  • From the List <<Positions>> Choose Apical 5 Chamber or find the same position with 3D Transducer.
  • Click the button <<Freeze>> to freeze image.
  • in the Tab <<MV st >> Click Radio Button <<VTI Lvot>>
  • Click the button <<CW>> to start CW doppler examination. Place Control Volume in LVOT (Left Ventricular Outflow Tractact) and Click.

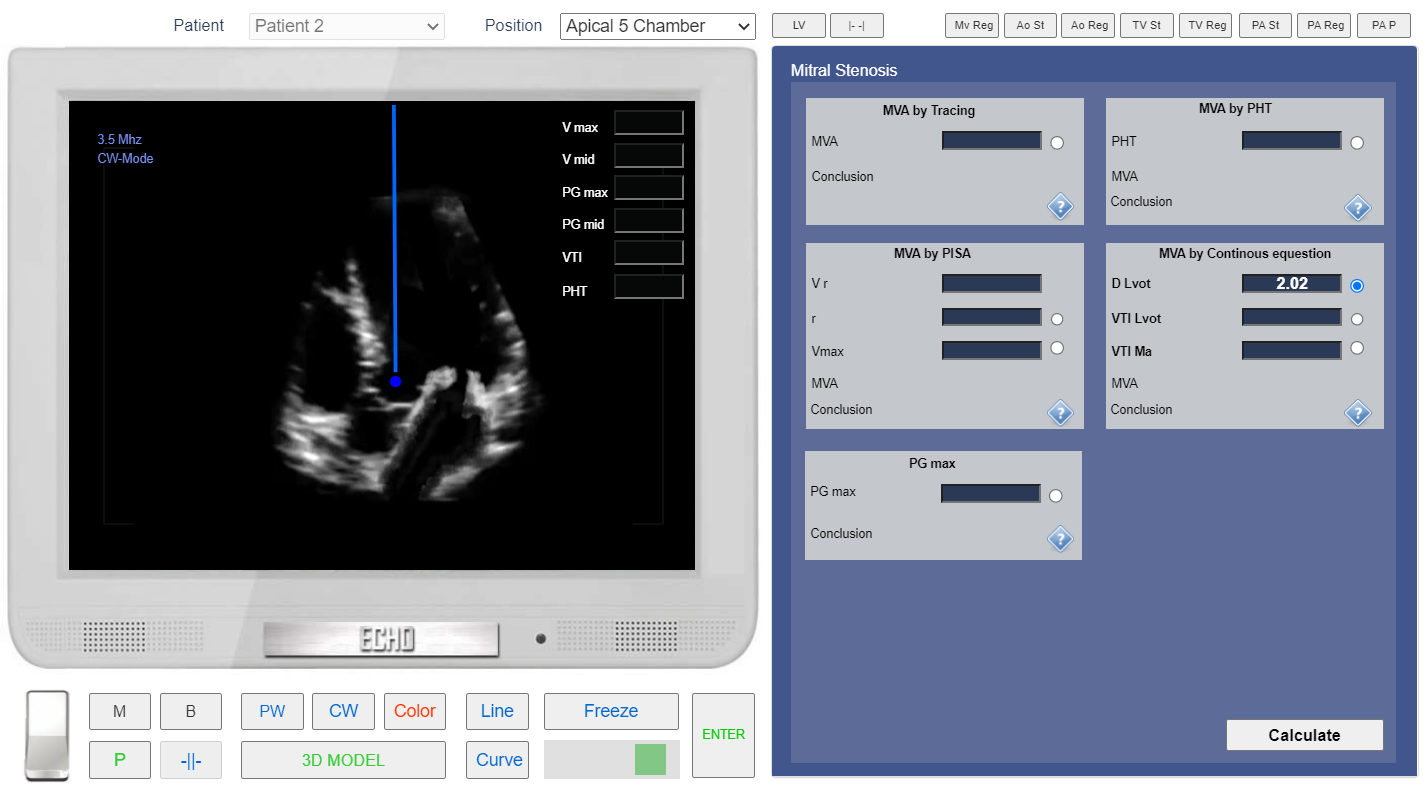

Apical 5 chamber view. CW Doppler. Control Volume in LVOT.



  • Click the button <<Curve>> place points around spectrogram of LVOT flow. See Spectral Doppler Measurements.
  • Click the button <<Enter>>

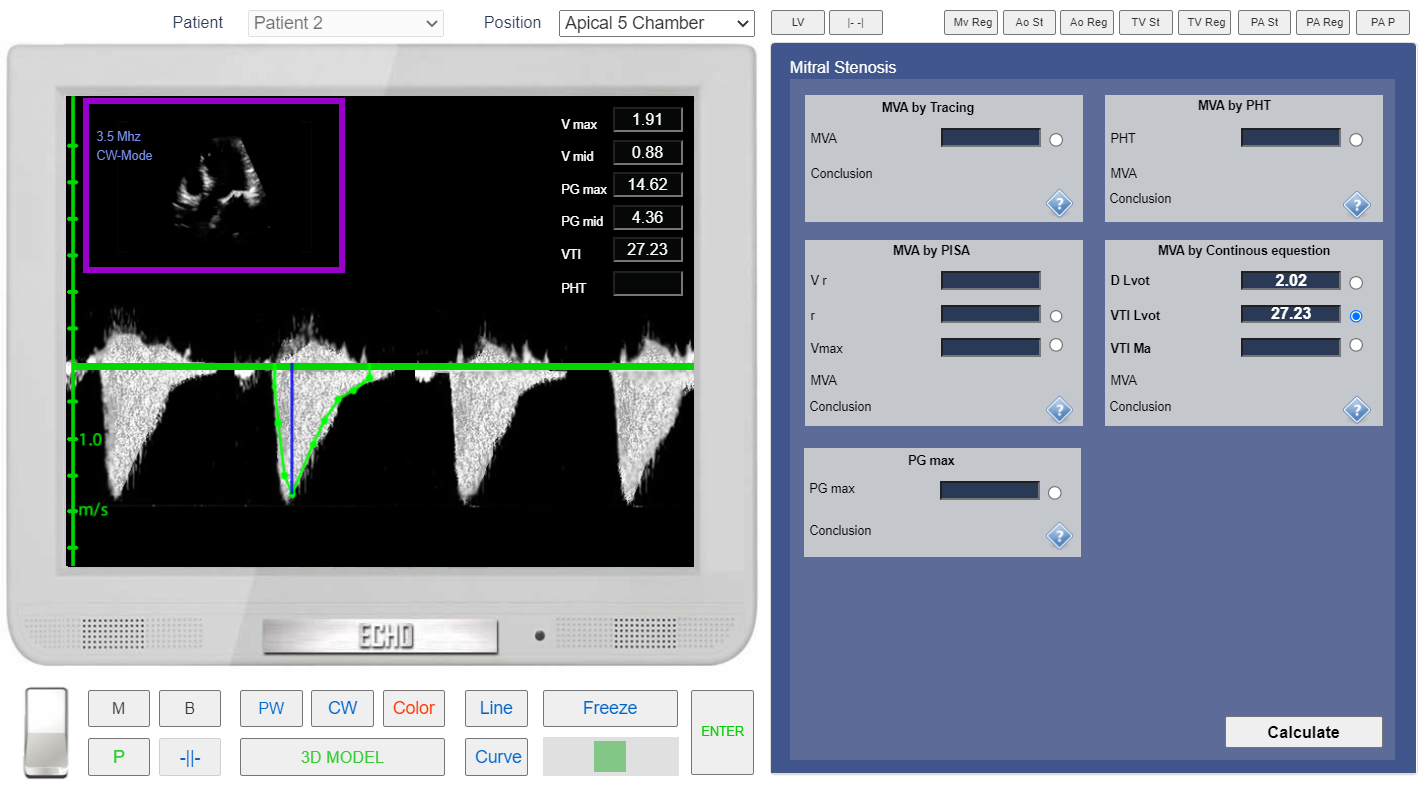

Apical 5 chamber view. CW doppler. Measurement of the VTI LVOT.



  • From the List <<Positions>> Choose Apical 4 Chamber or find the same position with 3D Transducer.
  • In the Tab <<MV st >> Click Radio Button <<VTI Ma>>
  • Click the button <<CW>> to start Continuous Wave doppler examination. Place Control Volume  Beetwen Mitral Valve Leaflets and Click.
  • Click the button <<Curve>> place points around spectrogram of MV Diastolic Flow. See Spectral Doppler Measurements.
  • Click the button <<Enter>>
  • In the Tab <<MV st >> Click Button <<Calculate>>

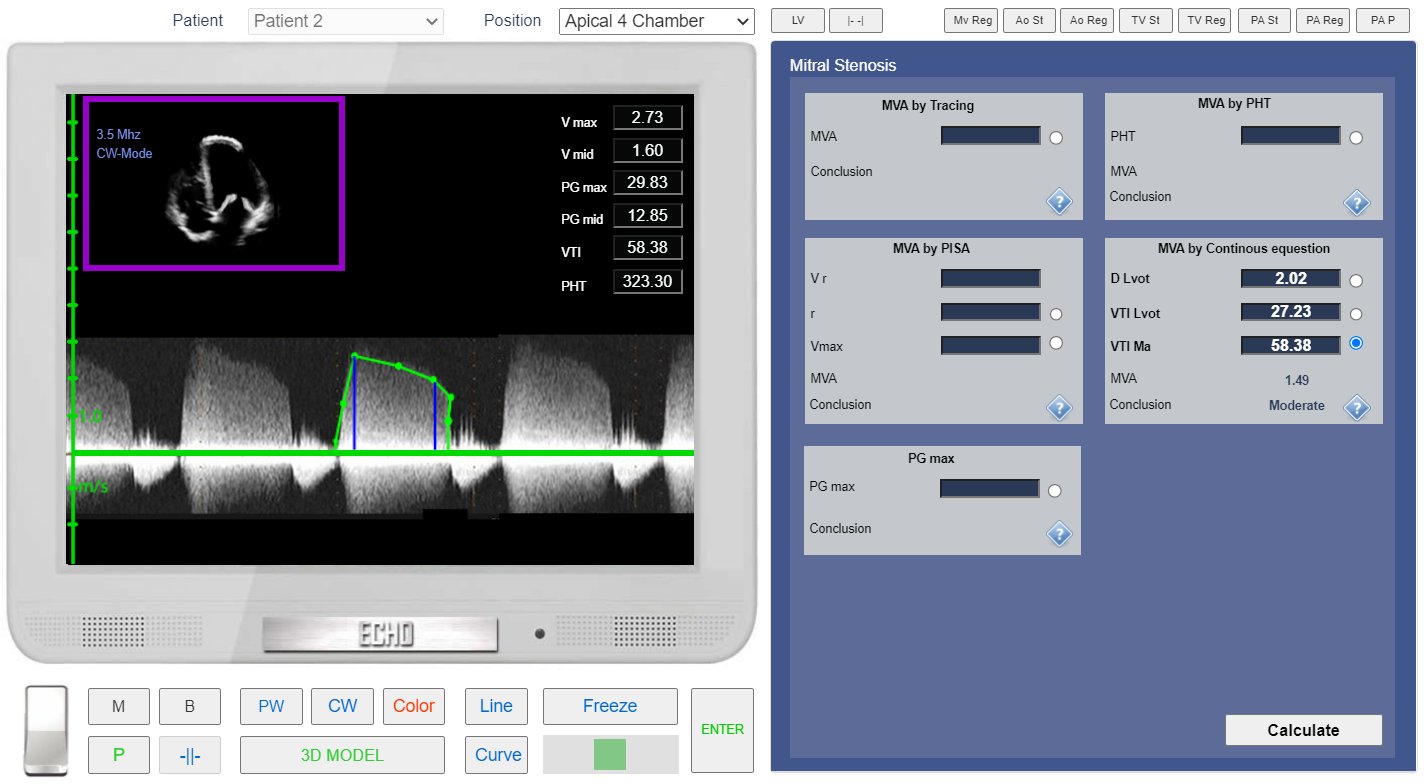

Apical 4 chamber view. CW doppler. VTI MV measurement.
