MyEchocardiographySTART SIMULATION

PRACTICE IN THE SIMULATOR

How to perform this examination

  1. Run Echocardiography Online Simulator
  1. From the List <<Patients>> Choose Patient
  2. From the List <<Positions>> Choose Apical 5 Chamber (Apical 5 Chamber View) or find the same position with 3D Transducer.
  3. Click Button <<Calculations>> Click Tab <<Ao St >> Click Radio Button <<Pic Velosity >>
  4. Click the button <<CW>> to move to Continuous Wave Spectral Doppler (CW).
  5. Place Control Volume between the leaflets of the Aortic Valve and click.
  6. Measure V max.
  7. Click the button <<Enter>>
Click image to enlarge

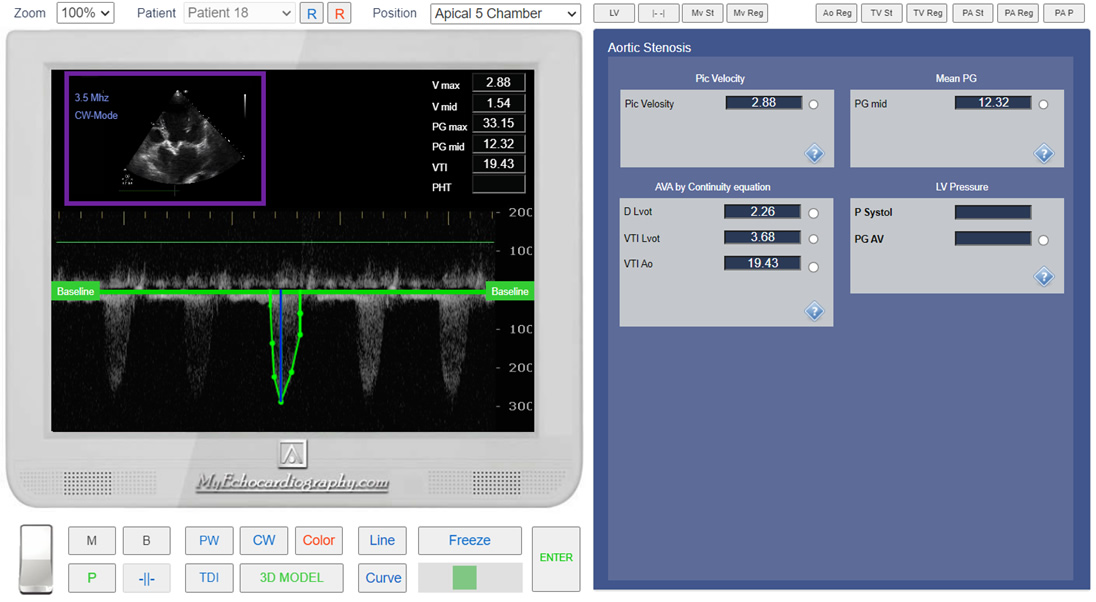

Apical 5 Chamber View. CW Doppler. Measurement of the Pic Velosity of the systolic flow and Mean pressure gradient. Aortic Stenosis. Simulation by Echocardiography Online Simulator MyEchocardiography.com

×
