Spectral Doppler Measurements

Echocardiography Simulator



What about a little bit of theory before beginning the simulation? >>>



  • Run the Echocardiography Online Simulator
  • Get Spectral Doppler on Display (PW or CW).



First way:

In this case we will get values for: V max, PG max and PHT

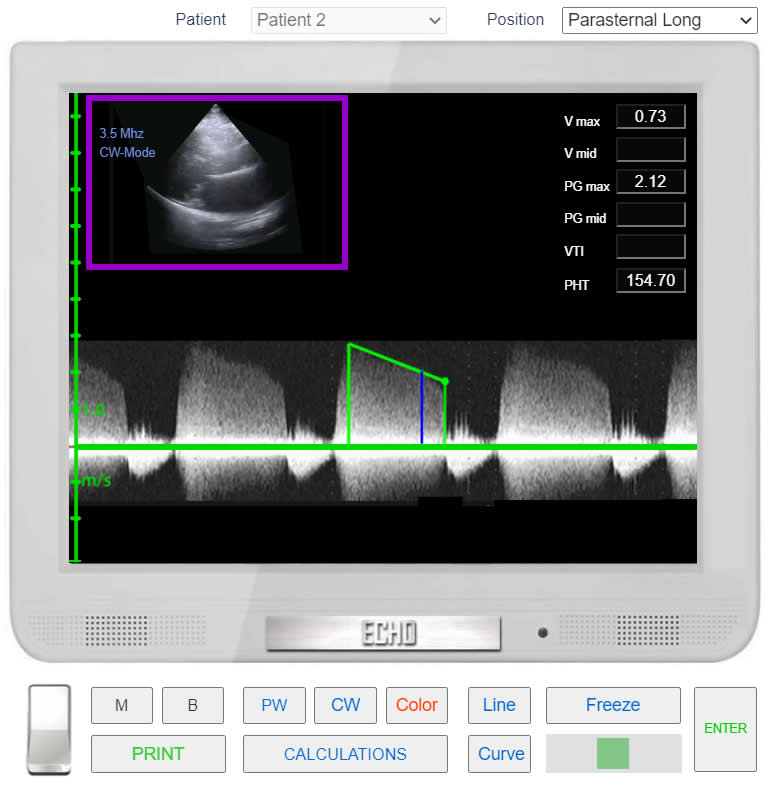

  • Click the button <<Line>> Put first point on the maximum point of the spectrogram. Put another point in the place, where velocity starts falling
  • Click the button <<Enter>>



Spectral doppler measurements. V max, PG max and PHT

Second way:

In this case we will get all values we need: V max, V mid, PG max, PG mid, VTI and PHT

  • Click the button <<Curve>> and put points around spectrogram
  • Click the button <<Enter>>



CW Doppler

Spectral doppler measurements. V max, V mid, PG max, PG mid, VTI and PHT





Back to Manual >>
