degree of Aortic regurgitation by PHt

Echocardiography Simulator



What about a little bit of theory before beginning simulation? >>>



  • Run Echocardiography Online Simulator
  • From the List <<Patients>> Choose Patient 4 (User can Choose other patients with mitral regurgitation as well).
  • From the List <<Positions>> Choose Apical 5 Chamber (Apical 5 Chamber View). or find the same position with 3D Transducer.
  • Click Button <<Calculations>> Click Tab <<Ao Reg>> Click Radio Button <<PHT>> (Calculator PHT).
  • Click the button <<CW>> to move to Continuous Wave Spectral Doppler (CW).
  • Place Control Volume in LVOT (Left ventricular outflow tract) and click.
  • Measure PHT.
  • Click the button <<Enter>>
  • In the Tab <<Ao Reg>> Click the button <<Calculate>>

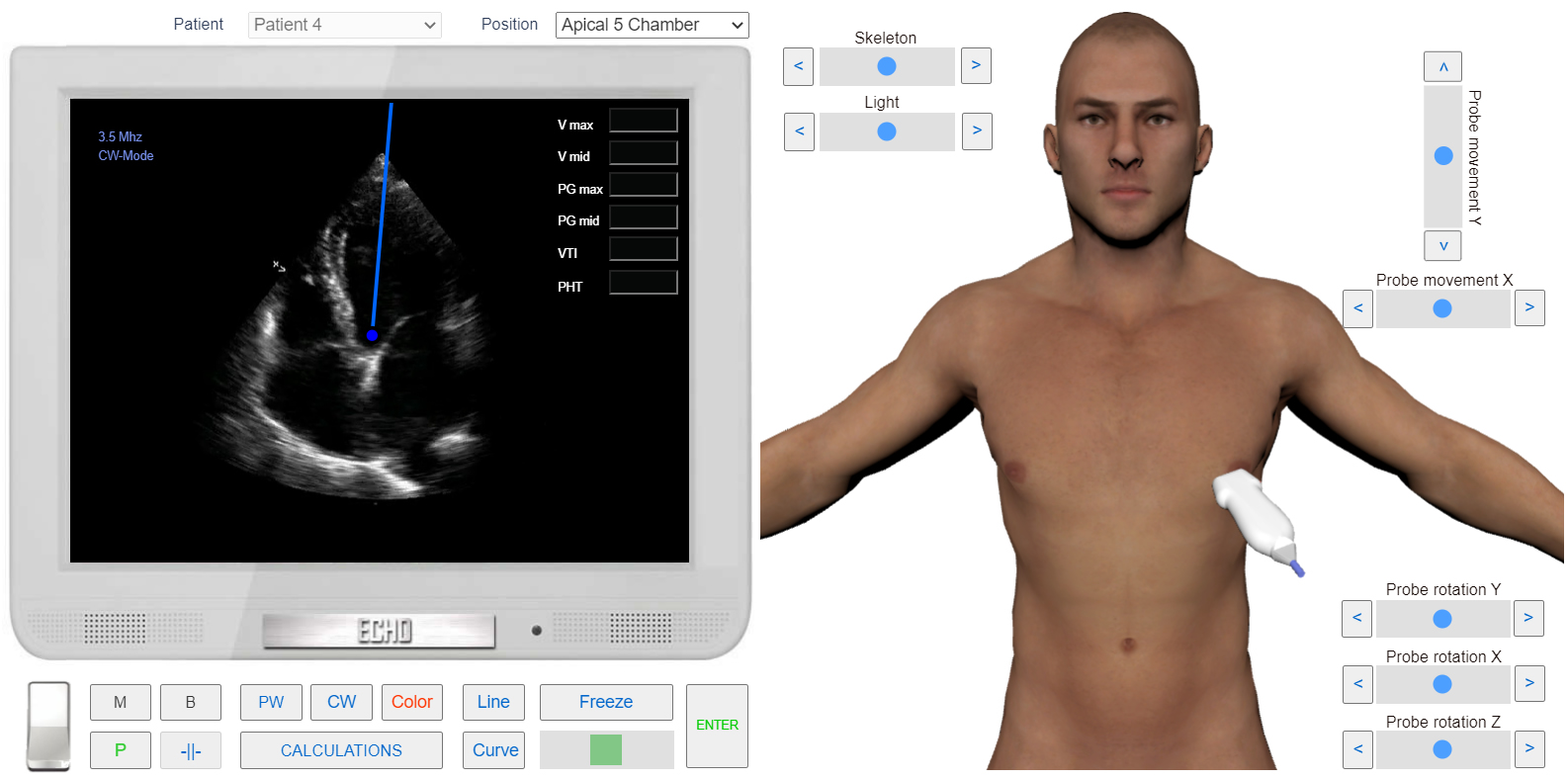

Apical 5 Chamber View. CW Doppler Control Volume in the LVOT (Left ventricular outflow tract).

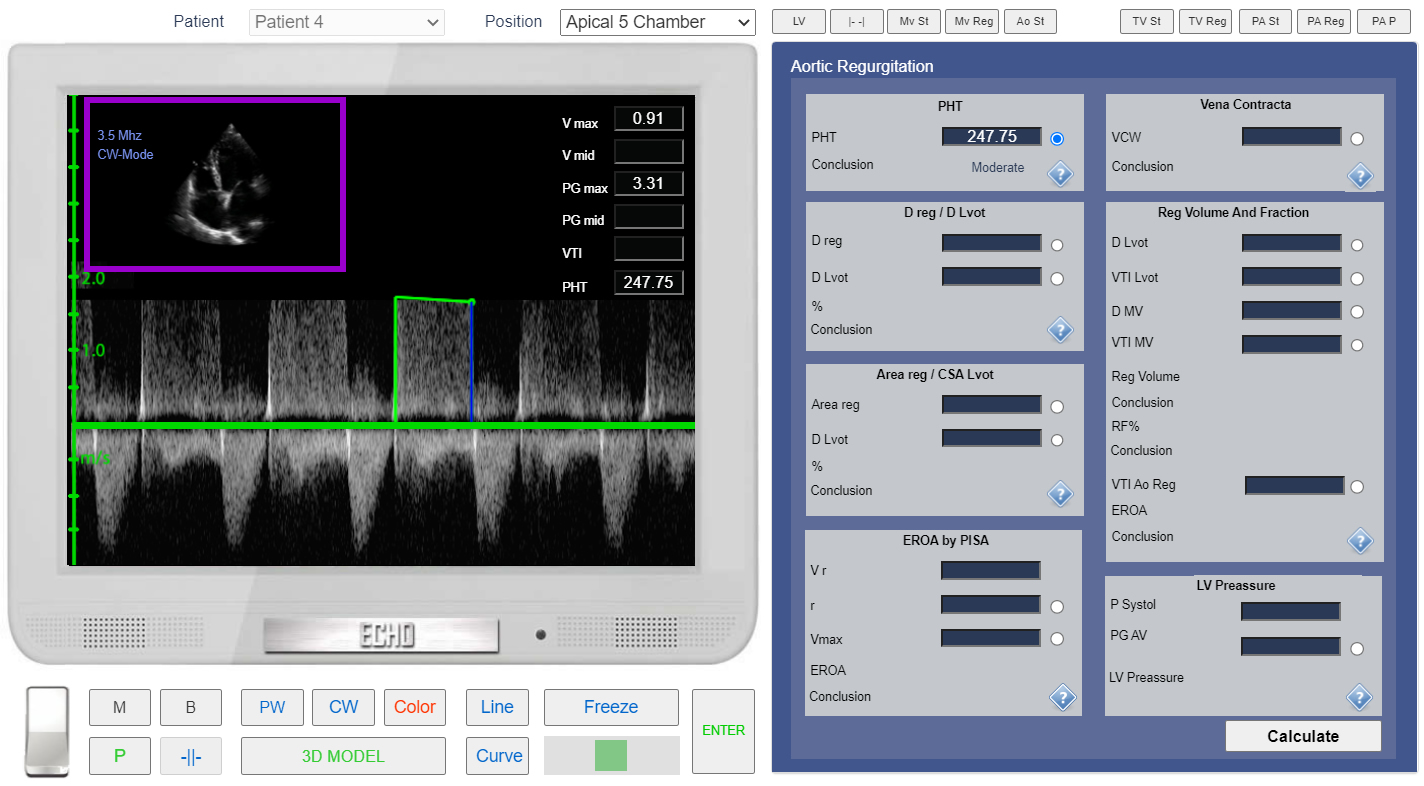

Apical 5 Chamber View. CW Doppler. Degree of Aortic Regurgitation by PHT
