PRACTICE IN THE SIMULATOR

How to perform this examination

  1. Run Echocardiography Online Simulator
  1. From the List <<Patients>> Choose Patient 2 (User can Choose other patients with mitral regurgitation as well).
  2. From the List <<Positions>> Choose Parasternal Short MV (Left Parasternal View, Short axis At the Level of Mitral Valve). or find the same position with 3D Transducer.
  3. Click the button <<Freeze>> to freeze image. Using Slider find the frame of maximum opening of mitral valve.
  4. Click Button <<Calculations>> Click Tab <<MV St >> Click Radio Button <<MVA>>
  5. Click the button <<Curve>>  and trace around inner side of the Mitral Valve.
  6. Click the button <<Enter>>
Click image to enlarge

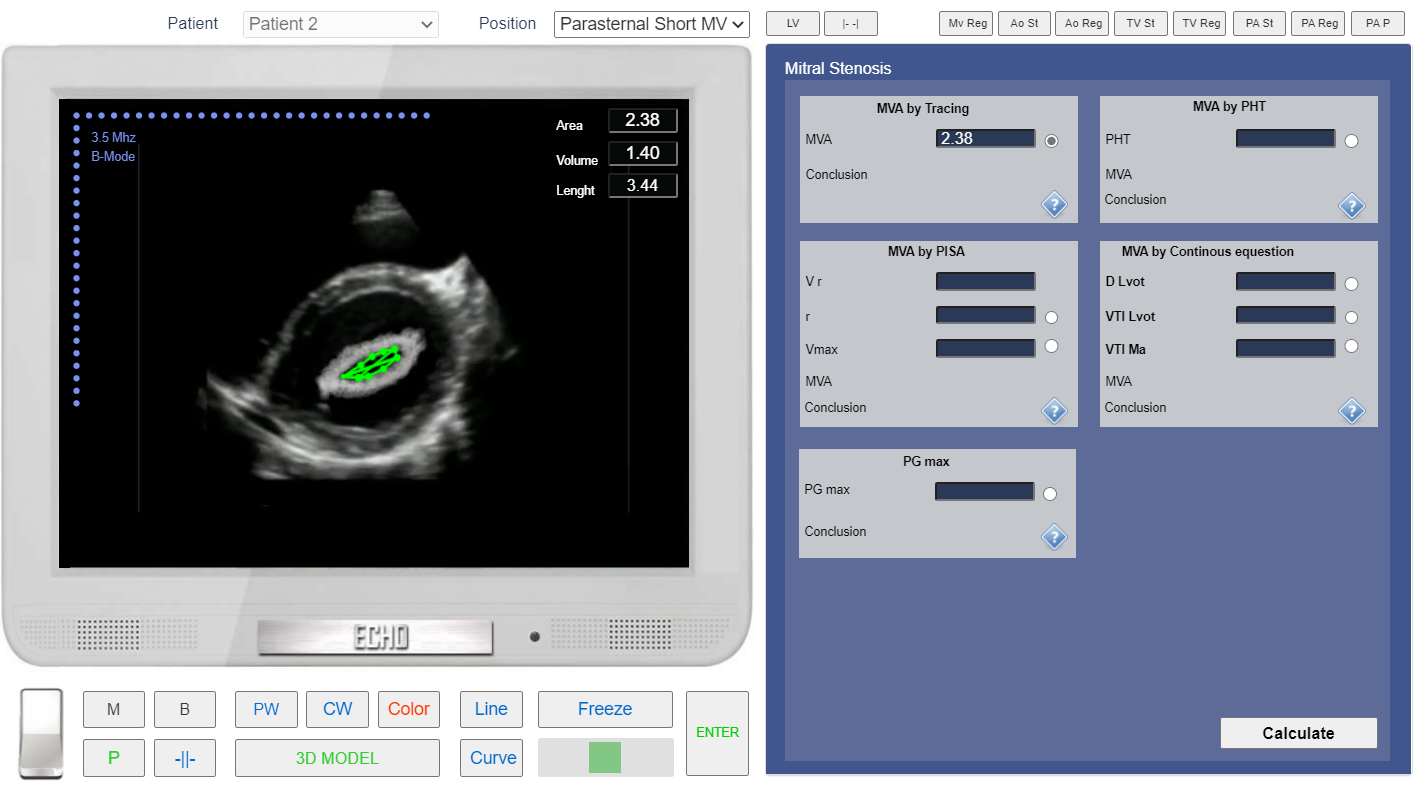

Left Parasternal View, Short axis at the level of the mitral valve. Tracing of the Mitral Valve.

×
