Degree of aortic regurgitation by Jet area/LVOT area

What about a little bit of theory before beginning simulation? >>>

PRACTICE IN THE SIMULATOR

How to perform this examination

1. Run Echocardiography Online Simulator

1. From the List <<Patients>> Choose Patient 5.
2. From the List <<Positions>> Choose Parasternal Short Ao (Left Parasternal View, Short axis of Ao) or find the same position with 3D Transducer.
3. Click the button <<Color>>

Click image to enlarge

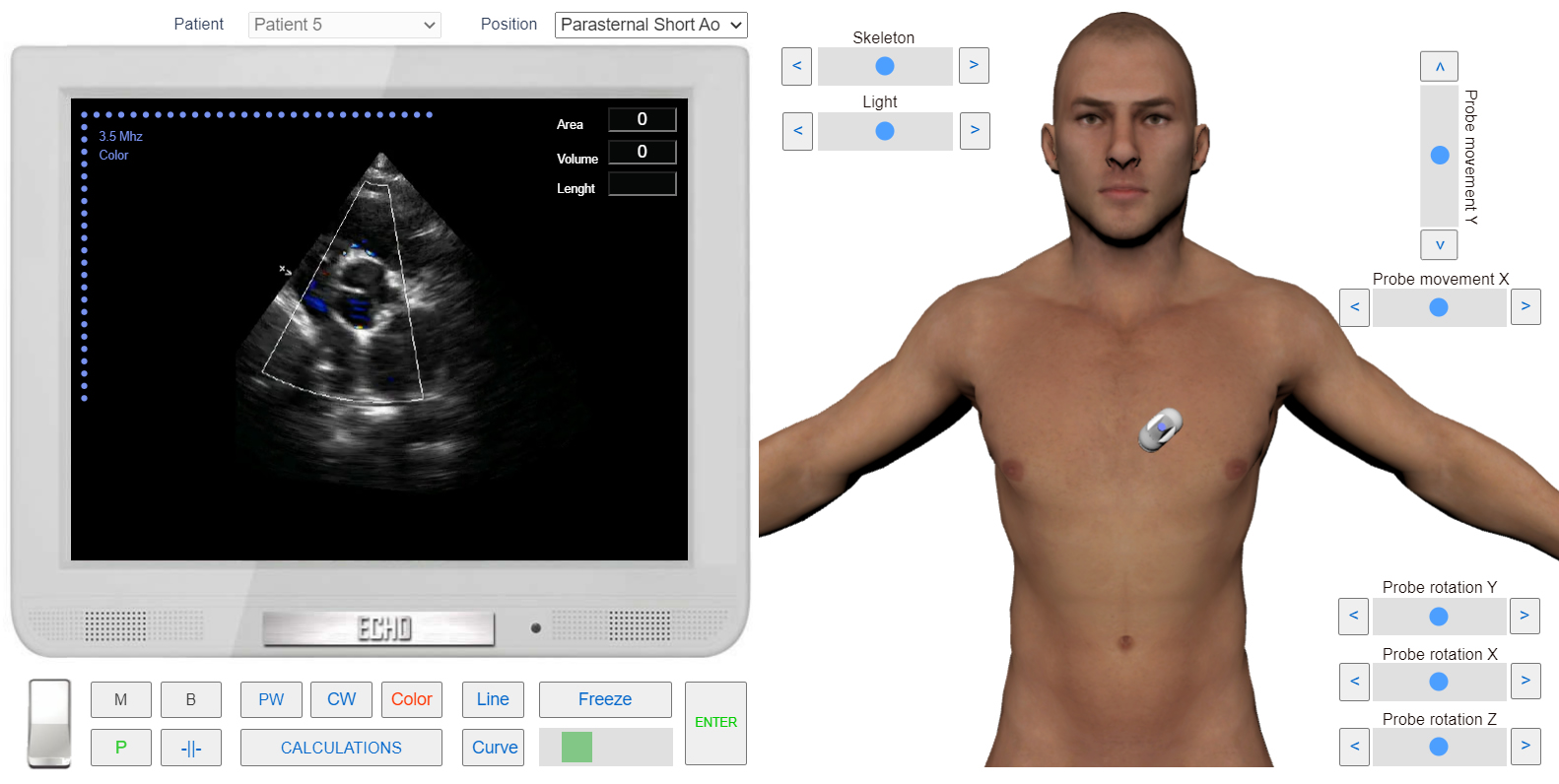

Left Parasternal View, the short axis at the level of Ao valve. Color Doppler.

PRACTICE IN THE SIMULATOR

1. Click the button <<Freeze>> to freeze image. Using Slider find the best frame of aotic regurgitation jet.
2. Click Button <<Calculations>> Click Tab <<Ao Reg>> Click Radio Button <<Area reg >> (Calculator Area reg / CSA Lvot).
3. Click the button <<Curve>> measure regurgitation jet area by tracing around it.
4. Click the button <<Enter>>.

Click image to enlarge

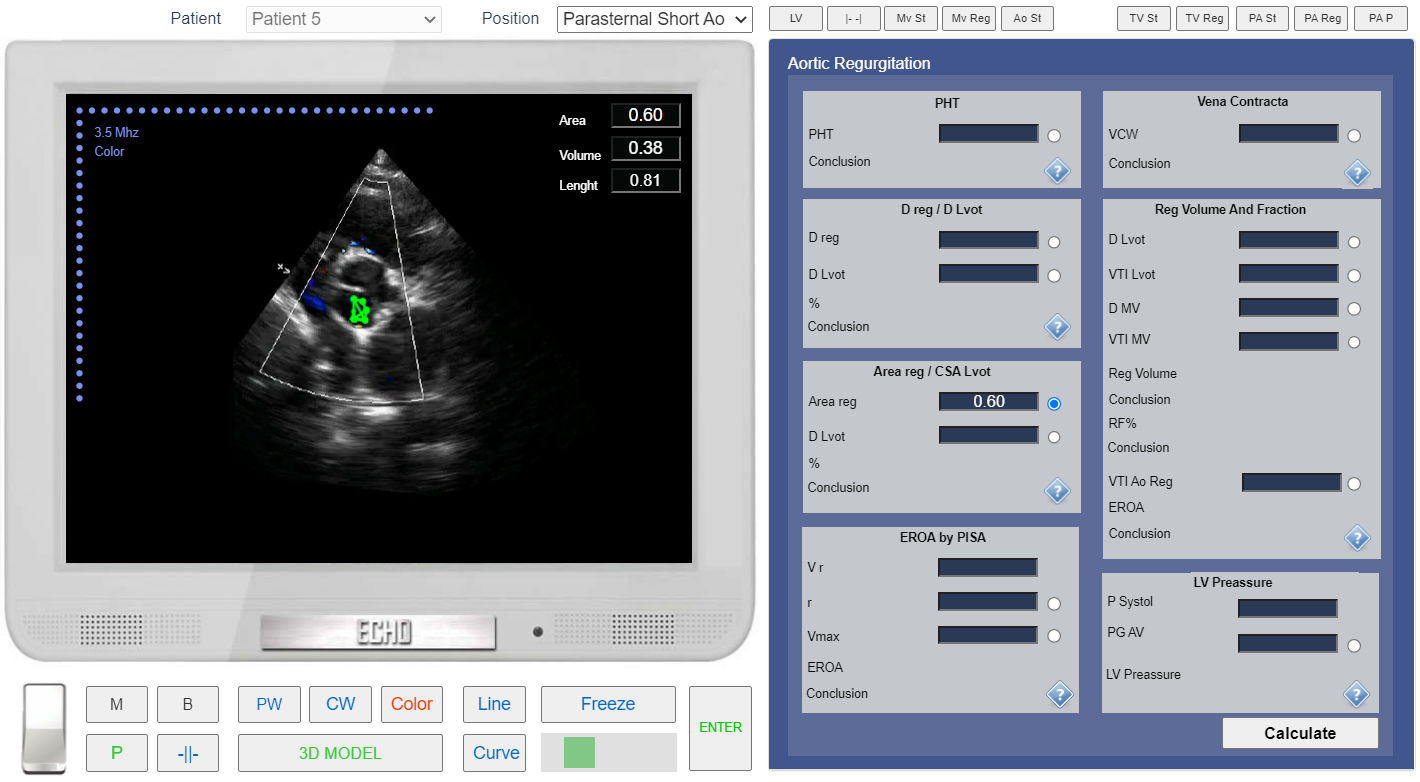

Left Parasternal View, the short axis at the level of Ao valve. Color Doppler. Measurement of the regurgitation jet area.

PRACTICE IN THE SIMULATOR

1. From the List <<Positions>> Choose Parasternal Long (Left Parasternal View, Long axis of LV) or find the same position with 3D Transducer.
2. Click the button <<Freeze>> to freeze image.
3. Click the button <<Line>> measure Diameter of LVOT (Left Ventricular Outflow Tract). Calculator will automaticly calculate CSA LVOT.
4. Click the button <<Enter>>.
5. In the Tab <<Ao Reg>> Click the button <<Calculate>>

Click image to enlarge

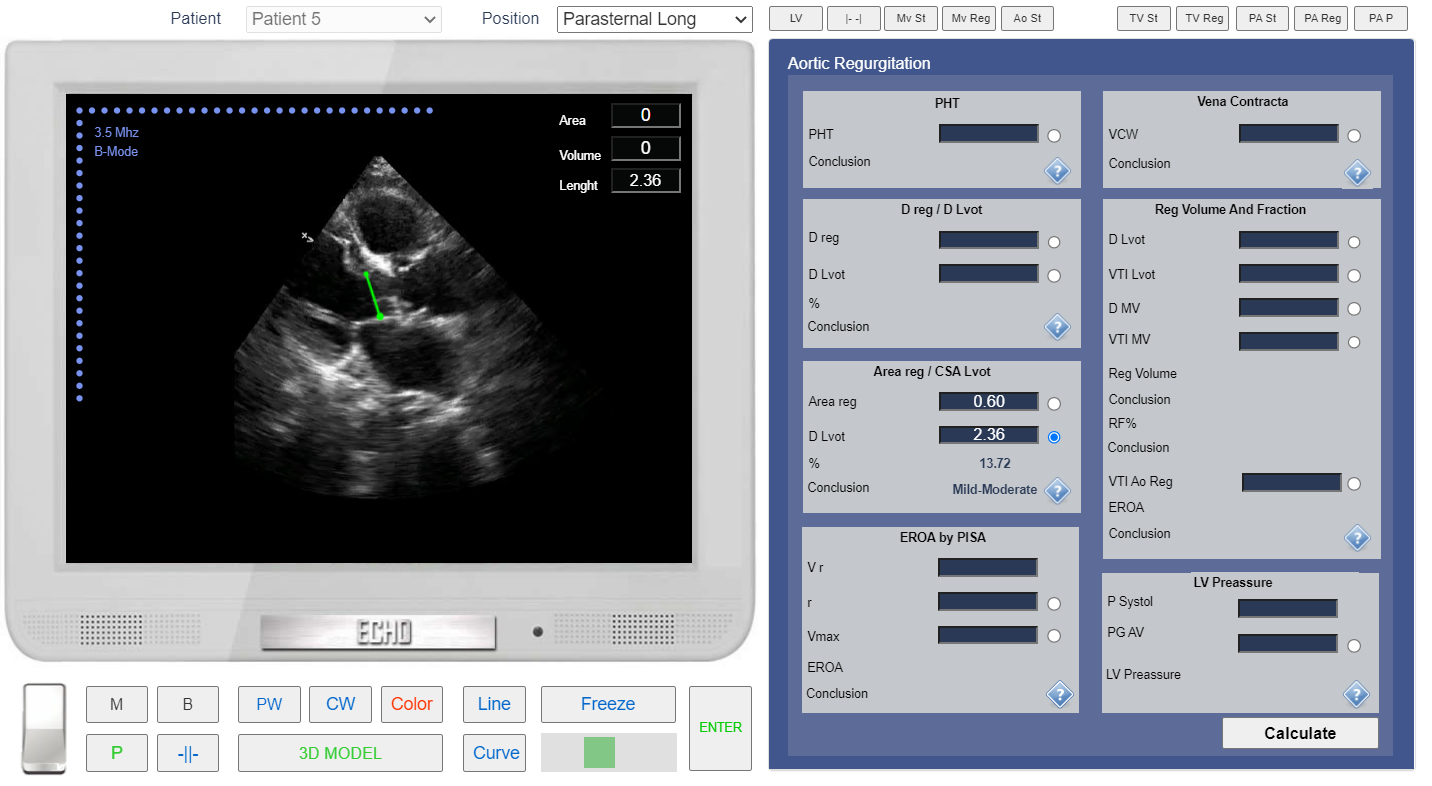

Left Parasternal View, the Long axis of LV, Measurement of the Left Ventricular Outflow Tract (LVOT) Diameter. Using this parameter, the Echocardiography calculator will measure LVOT Area.
