Degree of aortic regurgitation by Jet width / LVOT diameter

Echocardiography Simulator



What about a little bit of theory before beginning simulation? >>>



  • Run Echocardiography Online Simulator
  • From the List <<Patients>> Choose Patient 5.
  • From the List <<Positions>> Choose Parasternal Long (Left Parasternal View, Long axis of LV) or find the same position with 3D Transducer.
  • Click the button <<Color>>.



Left Parasternal View, the Long axis of LV, Color Doppler. Ao regurgitation



  • Click the button <<Freeze>> to freeze image. Click the Button << -||- >> and increase zoom level. Using Slider find the best frame of aotic regurgitation jet.
  • Click Button <<Calculations>> Click Tab <<Ao Reg>> Click Radio Button <<D reg >> (Calculator D reg / D Lvot).
  • Click the button <<Line>> measure regurgitation jet diameter in LVOT.
  • Click the button <<Enter>>.

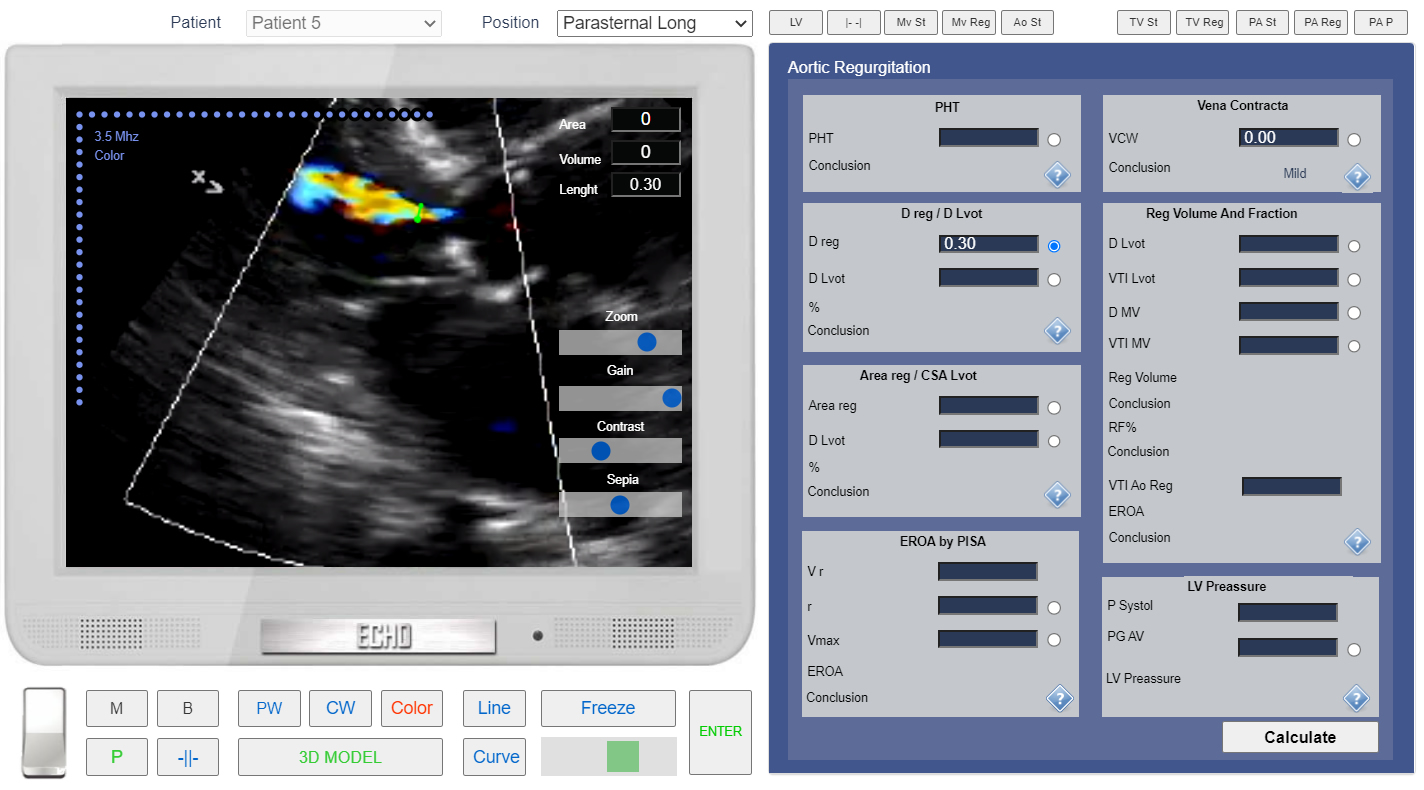

Left Parasternal View, the Long axis of LV, Color Doppler. Measurement of the regurgitation jet width.



  • From the List <<Positions>> Choose Parasternal Long (Left Parasternal View, Long axis of LV) or find the same position with 3D Transducer.
  • Click the button <<Freeze>> to freeze image.
  • Click the button <<Line>> measure Diameter of LVOT (Left Ventricular Outflow Tract).
  • Click the button <<Enter>>.
  • In the Tab <<Ao Reg>> Click the button <<Calculate>>



Left Parasternal View, Long axis of LV, Color Doppler. Measurement of the LVOT diameter.
