Virtual Echocardiography

Echocardiography online simulator

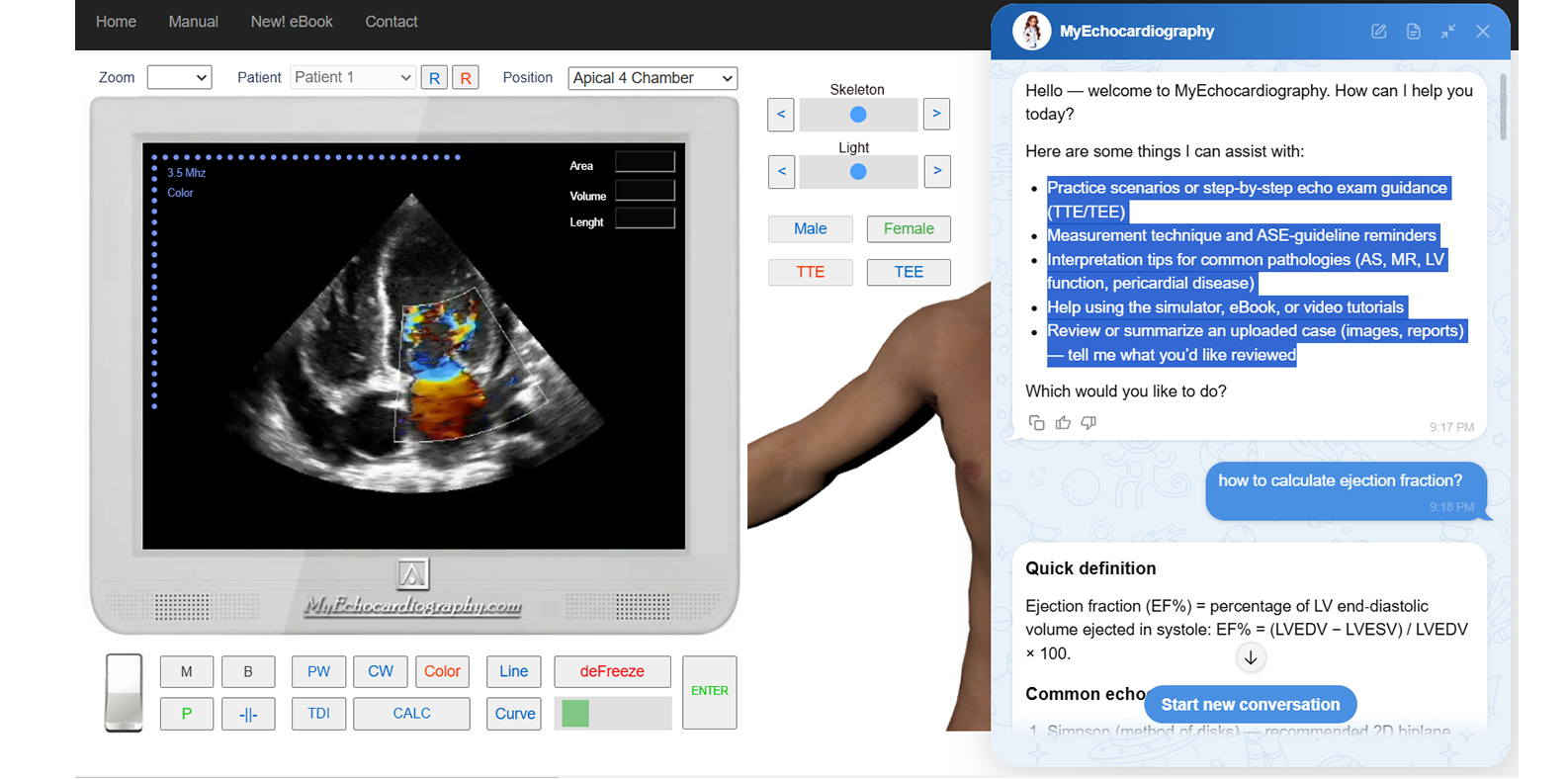

MyEchocardiography is the most advanced Transthoracic Echocardiography online simulator (Transthoracic Echocardiography Virtual system). The unique resource to learn Echocardiography! Brief theory, Echocardiography Calculators, Echocardiography Guidelines, Virtual Ultrasound Device, and Virtual patients in one place. Learn TTE Echocardiography faster and better than others!

The simulator is designed for medical faculty, students, and doctors who want to study Echocardiography or increase their knowledge. Users can Make all the Echocardiography examinations, measurements, and calculations according to the American Society of Echocardiography (ASE) guidelines. Detailed specifications of the simulator can be found below.





MoDES

All the basic modes

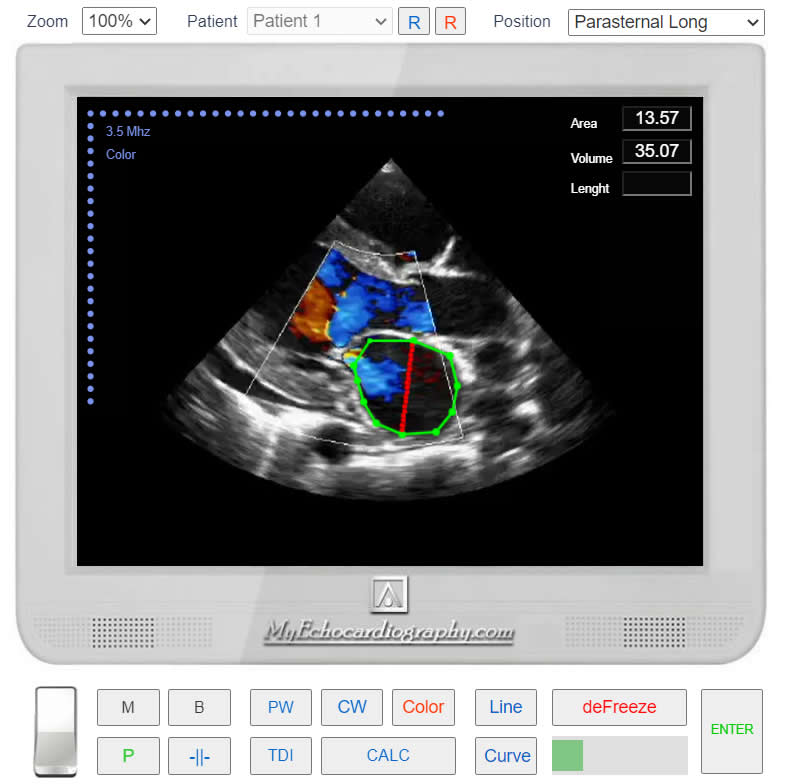

  • Two-dimensional echocardiography (B-Mode)

  • One-dimensional echocardiography (M-mode)

  • Color Doppler

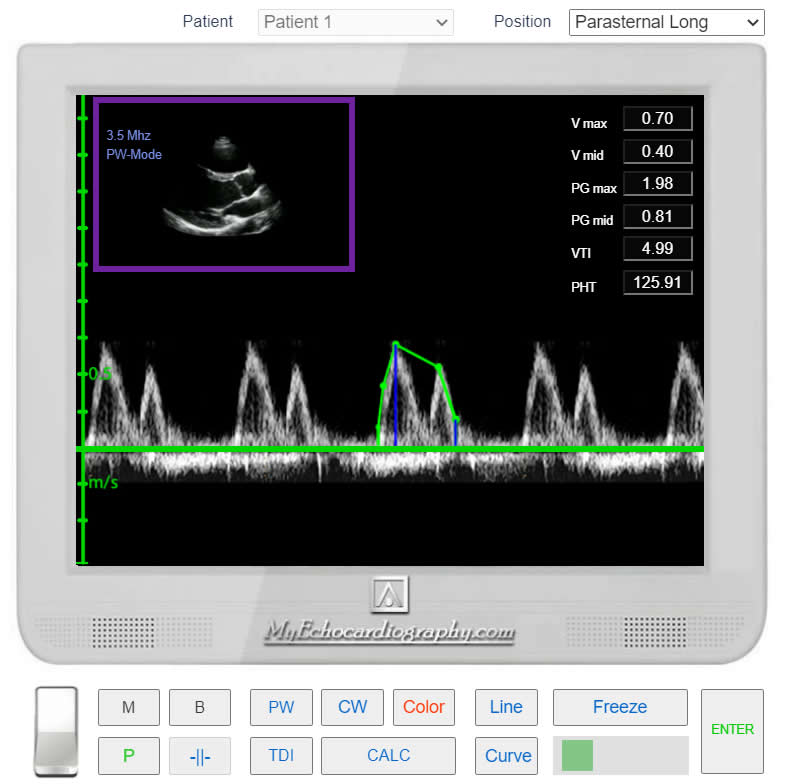

  • Pulse Wave Doppler (PW)

  • Continuous Wave Doppler (CW)

  • Tissue Doppler (TDI)


Measurments

Doppler and 2D



  • V max, V mid

  • PG max, PG mid

  • VTI

  • PHT.

  • Linear measurments

  • Area. Volume.

ALL THE BASIC CALCULATIONS

ASE GUIDELINES

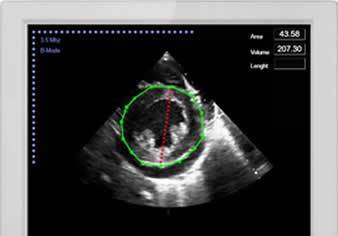

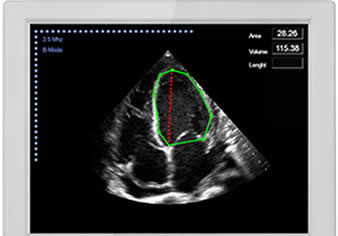

LV Volume


LV Calculations


LV Mass



LV EF% - Left Ventricle Ejection Fraction (Simpson Single Plane, Biplane), LV FS% - Left Ventricle Fractional Shortening, CO - Cardiac Output, SV - Stroke Volume, Cl - Cardiac Index, LV Mass - Left Ventricle Mass, PA pressure - Pulmonary artery pressure.





ASSESSMENT SEVERITY OF THE PATHOLOGY

ASE GUIDELINES


Volume and fraction


PHT (pressure half time)

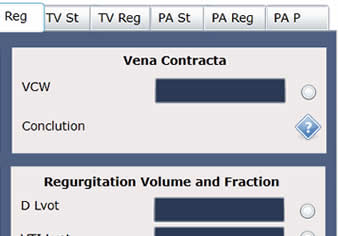

Vena contracta

Virtual echocardiography can make all basic calculations which are recommended by the American Society of echocardiography (ASE) for assessment of the severity of the disease:

MV Stenosis: MVA Tracing, PISA. PHT, MVA by Continuity equation, PG max.

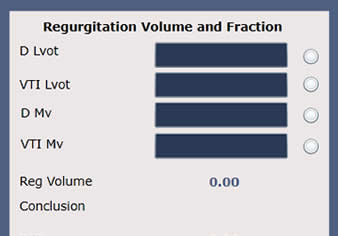

MV Regurgitation: Regurgitation Area, Reg Area / LA area, PISA, Regurgitation volume and fraction (Continuity equation), Vena Contracta.

Ao Stenosis: Pic Velocity, PG mid, AVA by Continuity equation.

Ao Regurgitation: PHT, D reg / D Lvot, Area reg / CSA Lvot, PISA, Vena Contracta, Regurgitation volume and fraction (Continuity equation).

TV stenosis: MG mid, TVA by Continuity equation, PHT. VTI.

TV Regurgitation: Regurgitation area, PISA.

PA stenosis: Flow Velocity, PG systol.

PA Regurgitation: Regurgitation jet size.

PA preassure measurement: Systolic pressure, Diastolic pressure, Mid pressure.

Left Ventricular Diastolic Dysfunction: E, A, Septal e', Lateral e', TR, LA Volume.





3D Model

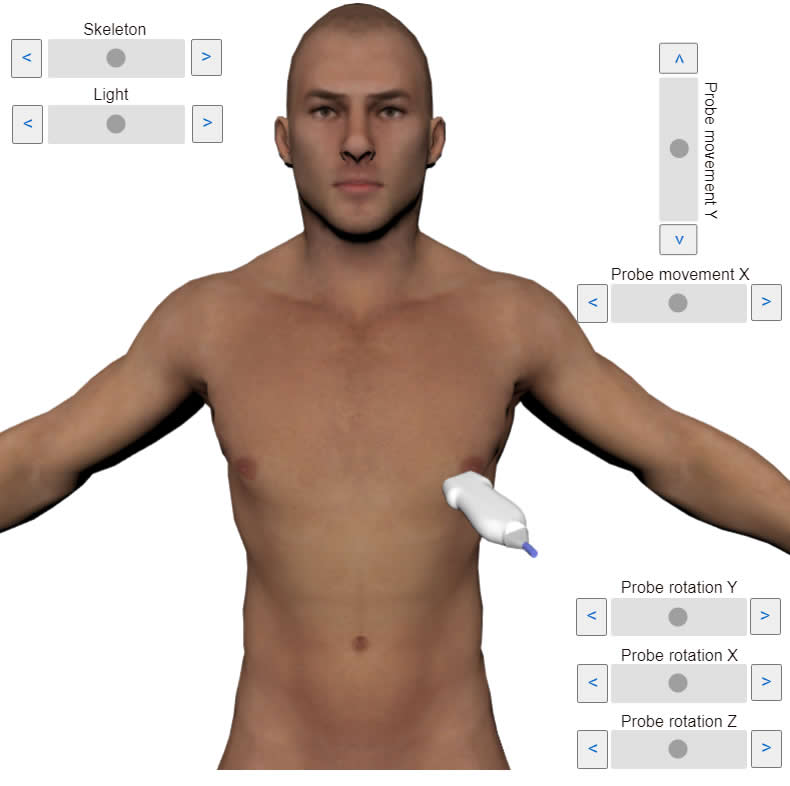

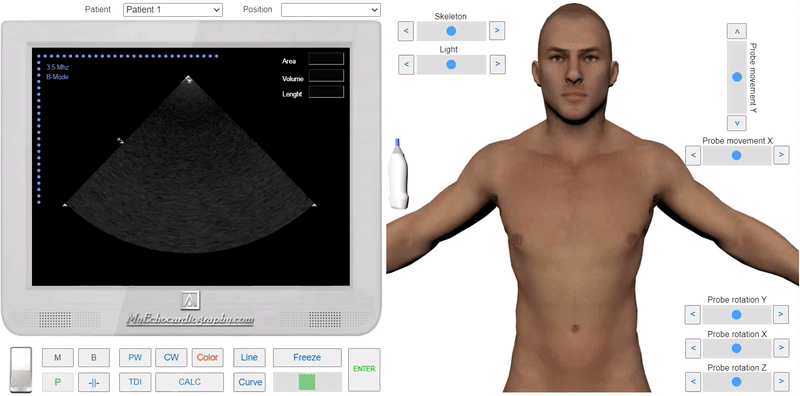

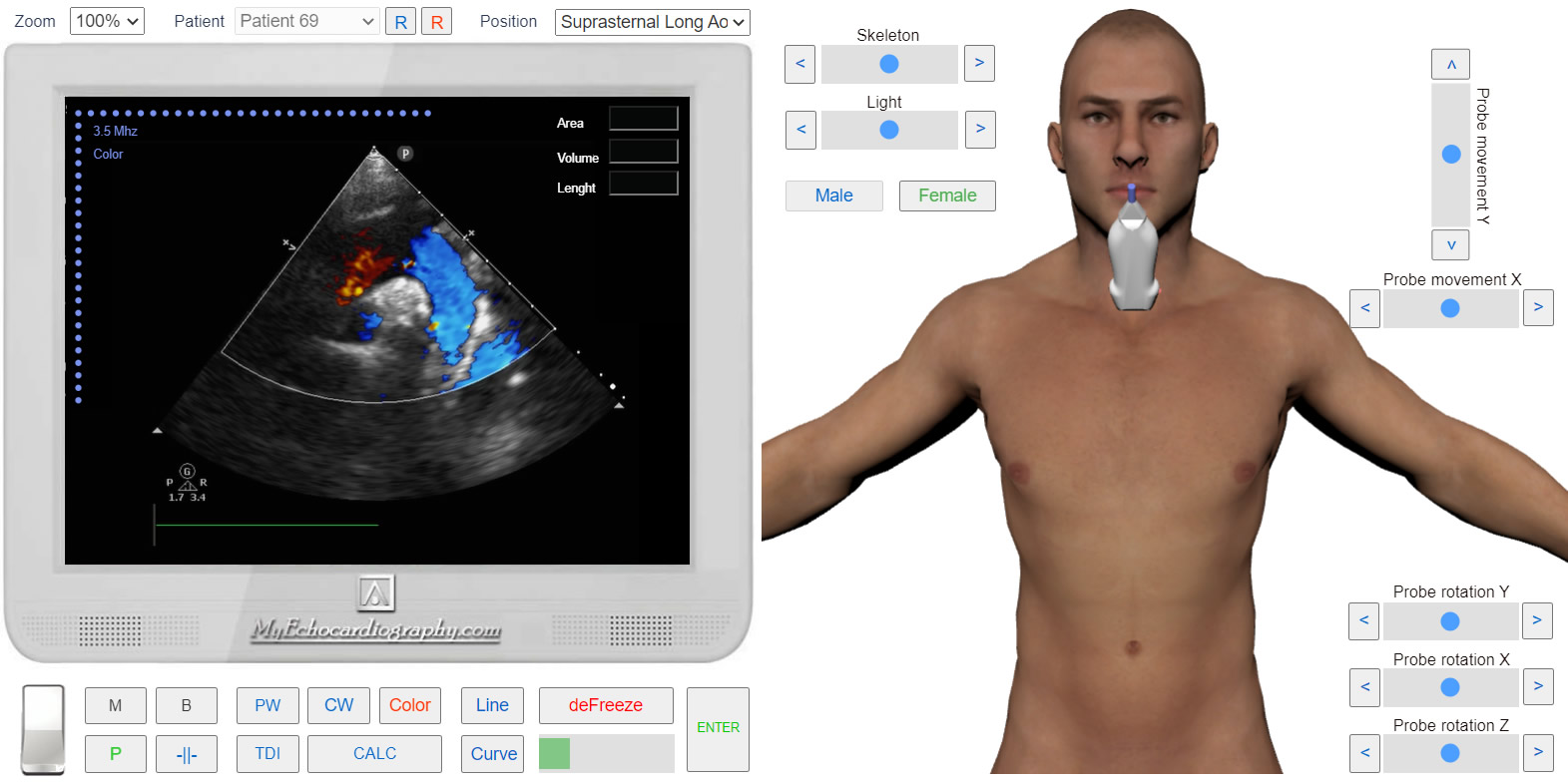

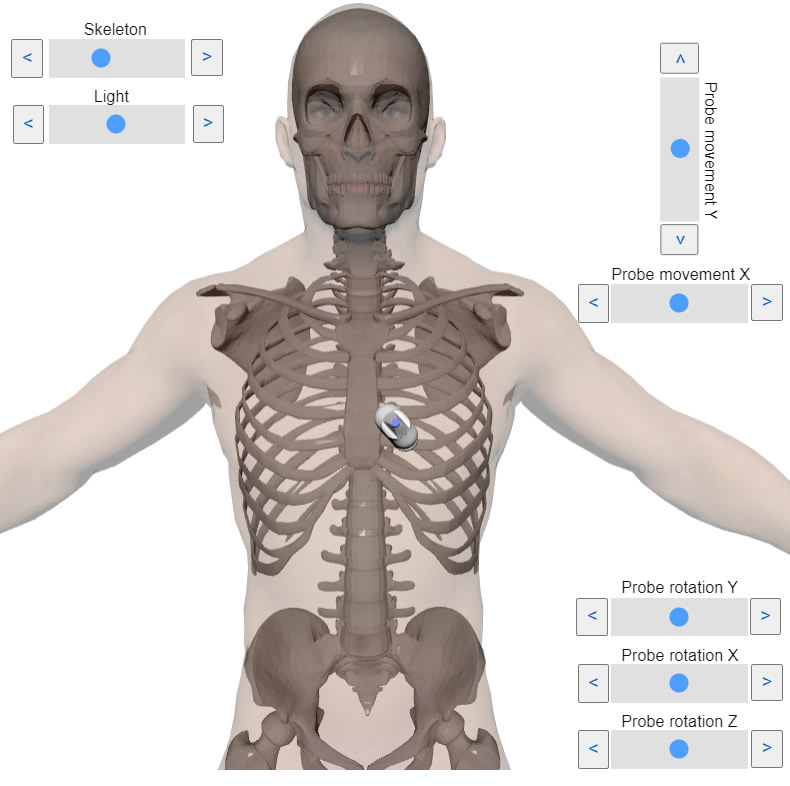

Transducer Position Simulation



  • Put Transducer, Move and Rotate in all direction

  • Find Echocardiography Position.

  • Get Echocardiogram on Display

  • Modes... Measurements... Calculations...





3D Model

Transducer Position Simulation



  • Parasternal Positions

  • Apical Positions

  • Subcostal positions

  • Suprasternal Positions


VIRTUAL ECHOCARDIOGRAPHY

VIDEO TUTORIALS


See more Video tutorials: LV mass, LV Ejection fraction (EF%), Assessment of Aortic regurgitation by PHP, Assessment of Mitral regurgutation by regurgitation area, Assessment of Mitral regurgitation by regurgitation volume and fraction.








News Field

OUR NEW PRODUCTS! WIRELESS ULTRASOUND DEVICES WITH SPECTRAL AND COLOR DOPPLER

 07/07/2022


Wireless ultrasound probe for echocardiography and Abdomen examination. B-mode, M-mode. PW doppler, Color doppler, Power doppler.

Read more...






WHERE TO START?

START HERE

CLICK the BUTTON <<REGISTER NOW>> to REGISTER FOR THE LICENCE. IF YOU ALREADY HAVE REGISTERED FOR VIRTUAL ECHOCARDIOGRAPHY CLICK THE BUTTON <<START>> to START the SIMULATION
